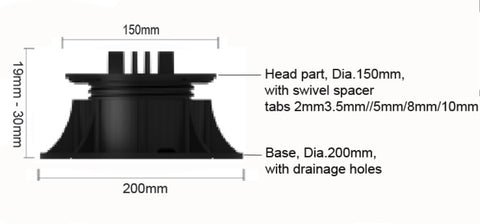

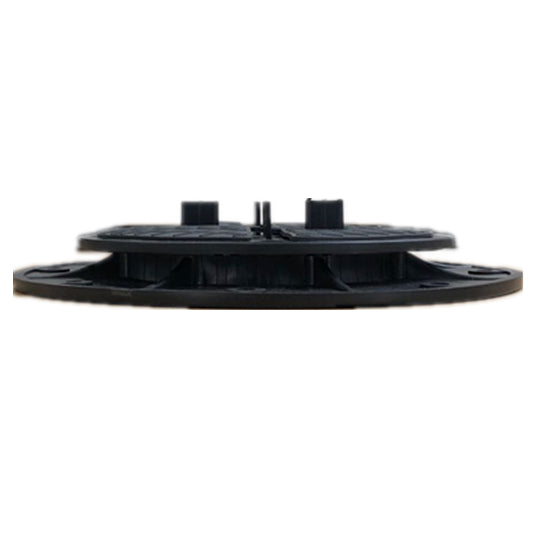

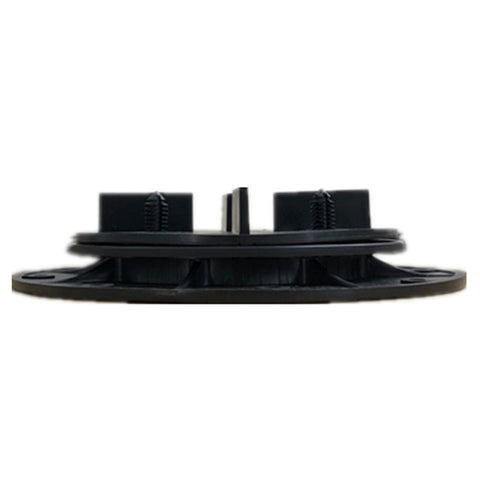

The DTG-S0 is the lowest adjustable pedestal on the market. PAVERS 19-30mm (0.75''-1.18''), LUMBER JOIST 24-35 mm (0.94''-1.38'') or DECK WISE 24-35 mm (0.94''-1.38'') , choose your connector!

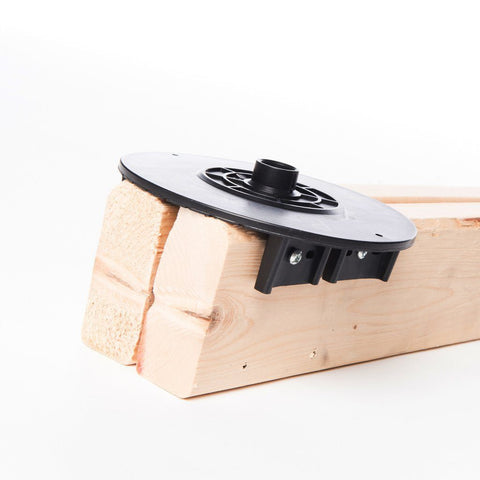

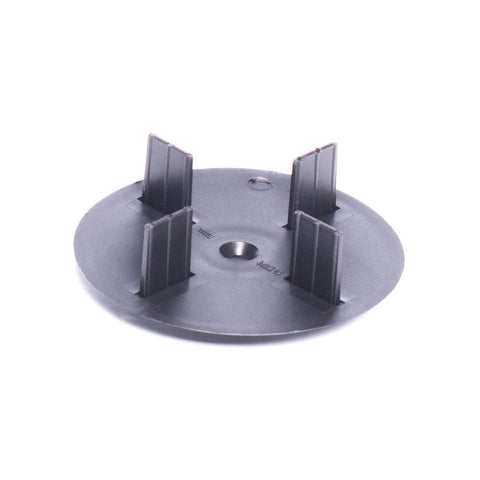

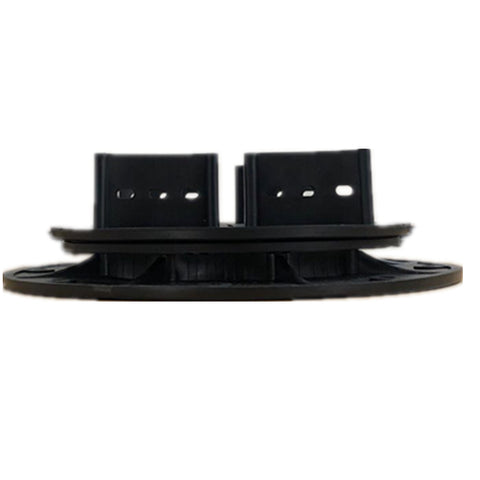

The Adjustable Pedestal Supports (pack of 32) comes with 32X Thickness Spacer Tabs (2mm), 32X DeckWise compatible connectors or 32X Lumber Adaptors. These supports can be used to allow for space between marble, pavers or cement tiles, depending on your application.
DOWNLOAD SELL SHEET CLICK HERE
DOWNLOAD CALCULATION SHEET CLICK HERE
* Remember that the heights shown above do not include the thickness of the raw lumber used.

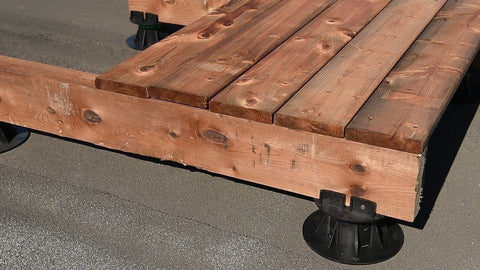

NOTE: The DTG-Adjustable Pedestals can sustain a lot of load. However, the weakest link rapidly becomes the roof membrane of your rooftop. If you don't have accurate data of your roof, we normally suggest to use 1 device every 2' in each direction. You can choose to screw them (if necessary) to the existing surface.
**If you have a slope on your roof, we also offer the DTG-Slope Corrector, which allows for a much easier and even set up.
